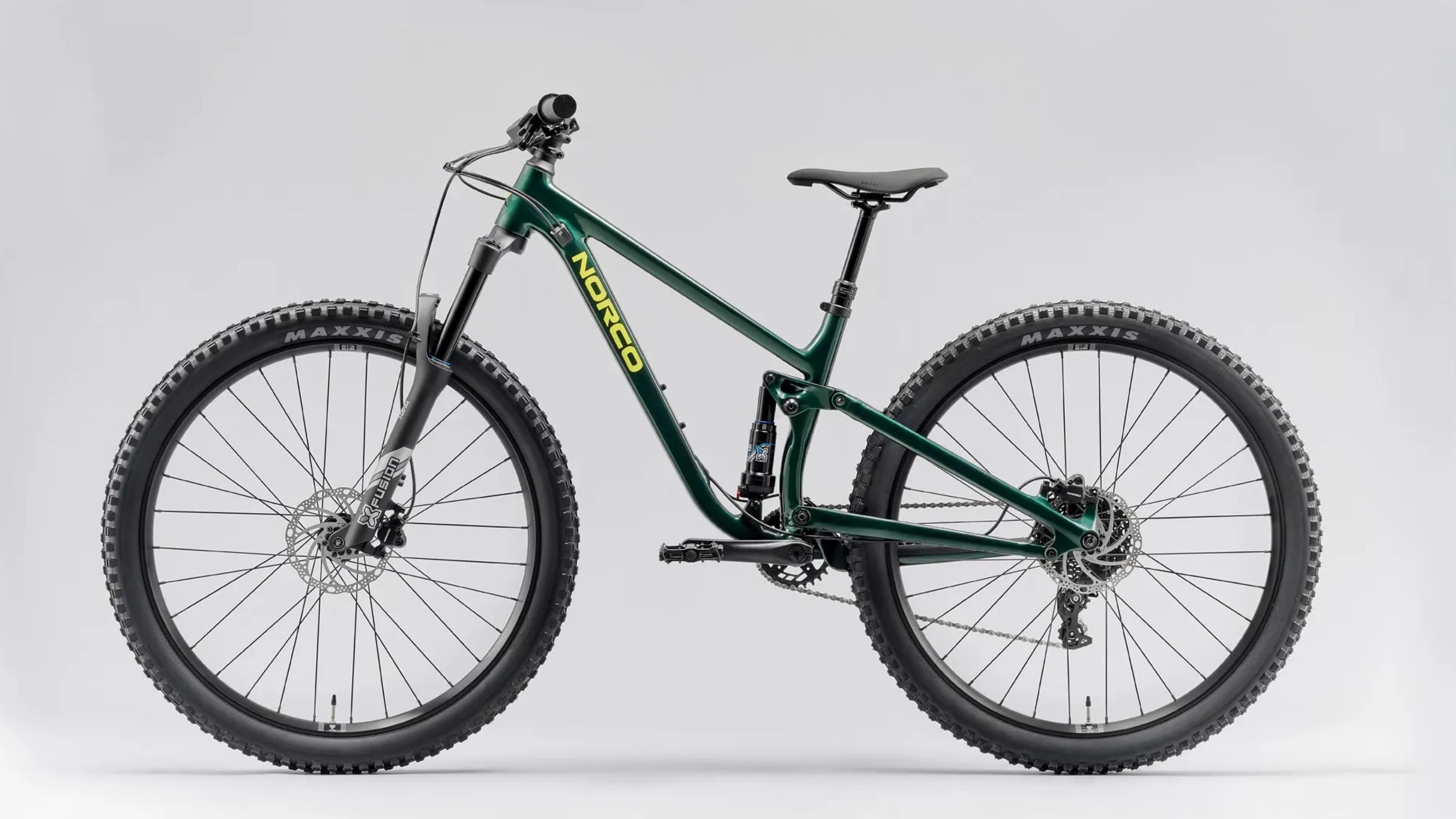

Norco Fluid FS Youth Gen 3 2026
Built for riders ready to transition toward full-size mountain bikes, the Norco Fluid FS Youth 27.5" Gen 3 2026 delivers true trail capability in a scaled platform that still feels manageable. The larger wheels roll faster and carry momentum over rough ground, helping developing riders tackle longer trails, steeper descents and bigger features with confidence. Designed to sit between youth bikes and adult frames, it supports progression without overwhelming smaller riders.
The Gen 3 platform uses Norco’s Ride Aligned™ Design System to match geometry and suspension behaviour to lighter rider weights. A stable wheelbase, low centre of gravity and generous standover height keep handling predictable while encouraging proper body positioning and technique. The result is a bike that feels calm at speed but still responsive enough to build skills on technical terrain.

Key Specs – Norco Fluid FS Youth Gen 3 2026
-
Frame -
6061 aluminium frame, Ride Aligned™ youth geometry, 120mm rear travel -
Fork -
Air suspension fork, approx. 130mm travel
-
Rear Shock -
X-Fusion 02 Pro R, youth-tuned for lighter riders
-
Drivetrain -
microSHIFT Advent wide-range clutch drivetrain

The 27.5 build focuses on control and endurance for riders stepping up from smaller wheels. Intended for pre-teens and teens who have outgrown 24" bikes but are not yet comfortable on adult sizes, it keeps suspension active under lighter riders while providing the efficiency needed for longer rides. From trail centres to natural singletrack, the bike encourages riders to explore further without fatigue.
On descents, the larger wheels improve stability and confidence while the youth-specific suspension tune keeps the bike supportive rather than harsh. The chassis stays composed through rough sections and the fit keeps the rider in control, turning faster and more technical trails into achievable lines. It’s built to develop skills that translate directly to full-size mountain bikes.

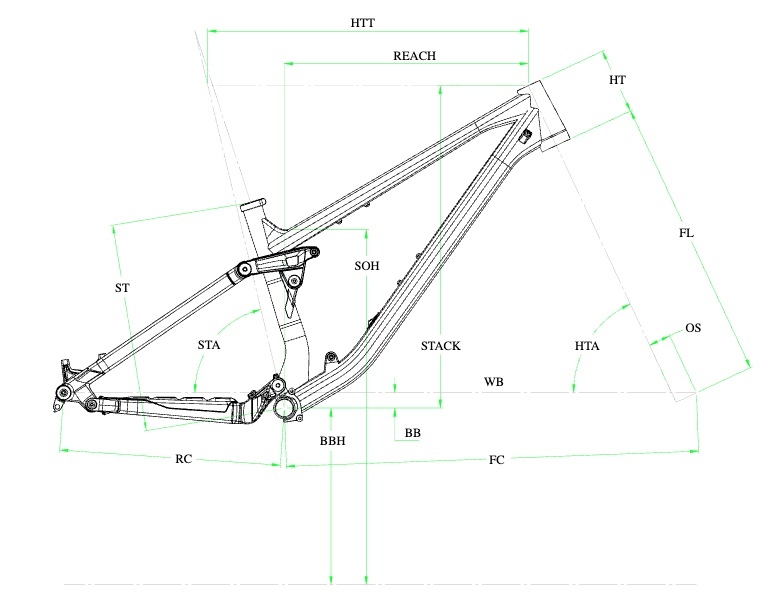

| Measurement | 27.5" |
|---|---|
| Wheel Size | 27.5" |
| Travel (front/rear) | 130/120mm |
| Reach (mm) | 380 |
| Stack (mm) | 568 |
| Head Tube Angle (°) | 66 |
| Fork Offset (mm) | 42 |
| Seat Tube Length (mm) | 370 |
| Effective Seat Tube Angle (°) | 76 |
| Rear Centre Length (mm) | 431 |
| Bottom Bracket Drop | NA |
| Bottom Bracket Height (mm) | 342 |
| Horizontal Top Tube (mm) | 522 |
| Wheelbase (mm) | 1101 |
| Standover (mm) | 640 |
| Head Tube Length (mm) | 100 |
| Trail (mm) | 114 |
| Recommended Seatpost Drop | NA |
| Maximum Post Insertion | NA |
| Stem Length (mm) | 40 |
| Crank Length (mm) | 170 |
| Tyre Size | 2.35" - 2.6" |
FAQs: Norco Fluid FS Youth Gen 3
Basics
What size bike do I need?
What is Frame Protection and is it worth fitting it to the Fluid FS Youth?
What is tubeless setup and can the Fluid FS Youth be set up tubeless?
What equipment & info will the bike arrive with?
Is it possible to see the Fluid FS Youth in your showroom & is it possible to have a test ride or demo it?
How should you clean & maintain the Norco Fluid FS Youth Gen 3?
Can you tell me about the Norco brand?
I'm new to riding, what essential bits of kit do I need to get going?
Where can I ride the Norco Fluid FS Youth Gen 3?
Technical
Where can I find all of the major components that come on the bike?
Can you fit a water bottle on the bike?
What warranty comes on the Norco Fluid FS Youth Gen 3?
Does the Norco Fluid FS Youth Gen 3 come with pedals?
Can I get hold of spare / replacement parts easily for the Norco Fluid FS Youth Gen 3?
Can I add upgrades to the bike?
Purchasing
Why choose MTB Monster?
Do you offer 0% finance for the Norco Fluid FS Youth Gen 3?
Do you accept Cycle To Work vouchers? How does it work?
I'm still sorting my payment method, can I reserve a bike?
The bike is not yet in stock, can I pre-order one?
How will the bike be delivered & what are the setup requirements?
What are the delivery options?
Can I collect the bike in the store?
I still have more questions, can I speak to someone?
- FRAME:
- 6061 Alloy, 120mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
- FRAME MATERIAL:
- Aluminium
- FORK BRAND:
- X-Fusion
- FORK:
- X-Fusion RC32 Air, 130mm, 46mm O!set, 15x110mm Boost
- FORK TRAVEL:
- 130 mm
- REAR SHOCK:
- X-Fusion 02 Pro R, 190x42.5mm Standard
- WHEEL SIZE:
- 27.5
- WHEELS:
- Rims: WTB ST, 27mm ID, 32H Front Hub: Formula DC-511, 15x110mm Boost, 32h, 6-bolt Rear Hub: Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt
- TYRES:
- Front: Maxxis Minion DHF, EXO, 27.5"x2.5", Folding Rear: Maxxis Minion DHR II, EXO, 27.5" x 2.4", Folding
- DROPPER SEATPOST:
- Yes
- SEATPOST:
- TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune
- SADDLE:
- WTB Solano Med, 142x240 mm, Steel Rails
- CRANKSET:
- Prowheel Junior Alloy, 30T, 155mm
- STEM:
- Norco 6061, 35mm Length, 31.8mm Clamp
- GRIPS:
- Norco Youth Lockon, 115mm Length
- SHIFTERS:
- microSHIFT Advent, 9sp
- BRAKE BRAND:
- Tektro
- HYDRAULIC BRAKES:
- Yes
- BRAKES:
- Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
- REAR DERAILLEUR:
- microSHIFT Advent, 9sp, Short Cage Clutch
- CHAIN:
- KMC X9, 9spd
- NUMBER OF GEARS:
- 9 speed
- PEDALS:
- Available for Purchase
- FRONT MUDGUARD:
- MTB Monster Mudguard
- EXTRAS:
- N/A
- PLEASE NOTE:
- Norco reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
